Admin Dashboard — Design of Record (M27, #485)

These boards are the Al-approved (2026-08-15) design of record for milestone M27 — Admin Dashboard. The UI build slice (#486) implements these patterns and nothing beyond them.

Canonical Penpot study

The five patterns are reproduced as a version-controlled Penpot file on the self-hosted server:

• File: Bloom Admin Dashboard — M27 (project Bloom Dashboard)
• URL: https://bloom-design.exe.xyz/#/workspace?team-id=15cab2bd-418a-81a7-8008-69cdbdab9f82&file-id=15cab2bd-418a-81a7-8008-7c4cd225d590&page-id=15cab2bd-418a-81a7-8008-7c4cd225d591
• One page, ten boards: each pattern as a desktop (1120px) and mobile (390px) frame, faithful to reference/admin-design-study.html (layout, palette, type scale, read-only banner, sort/filter whitelist, redaction cues).
• A named Penpot snapshot ("M27 #485 — faithful reproduction of Al-approved boards (2026-08-15)") pins the delivered state.

Known limitation: the deployment's Penpot exporter service (headless Chromium) is unavailable (/api/export → 400), so PNG exports could not be produced from Penpot. The PNGs below are the approved renders of the same boards and serve as the previews of record.

The five patterns

#	Pattern	Preview
1	Admin shell — nav (7 resources + Overview, counts from each resource's total), read-only banner, identity + role pill, self sign-out

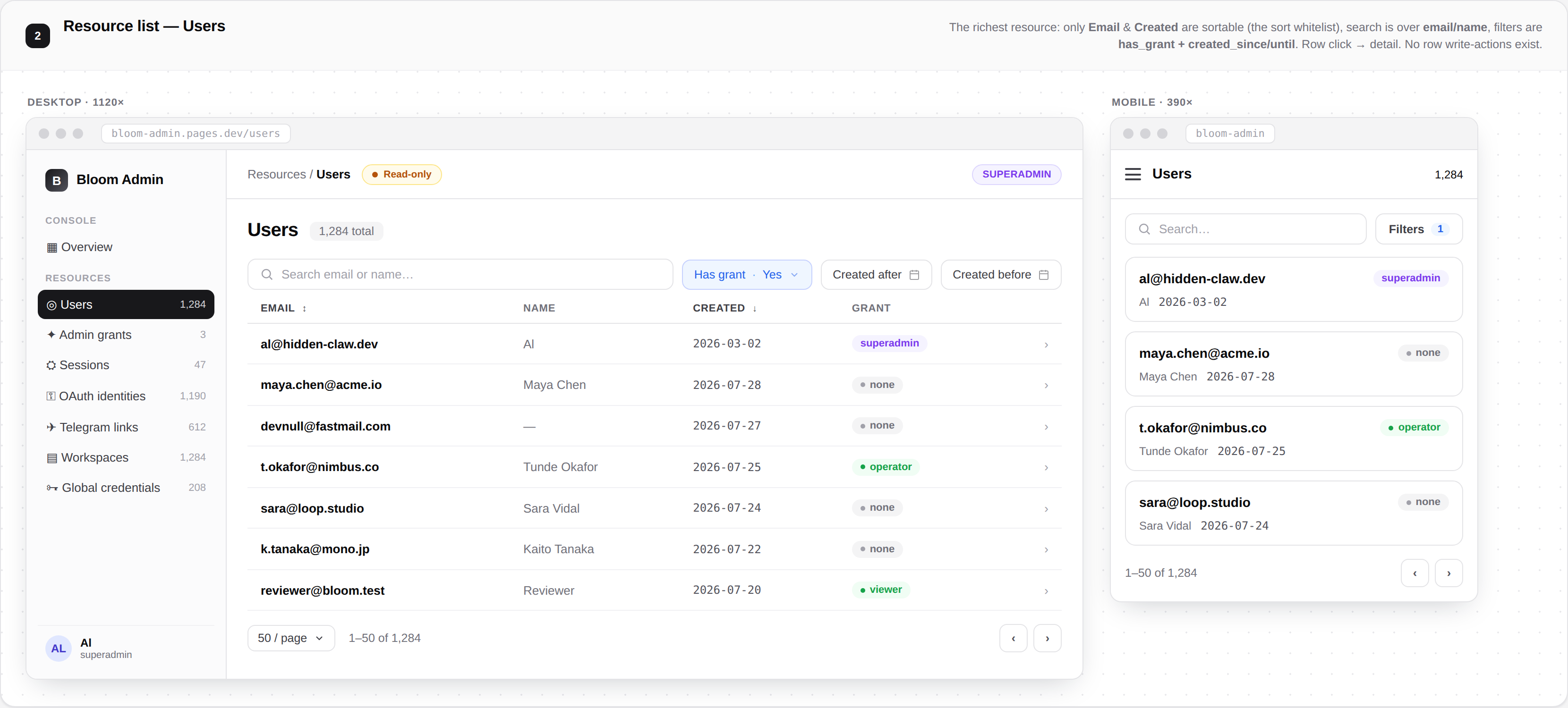

2	Resource list (Users) — only whitelisted sort/search/filter controls; › view affordance per row

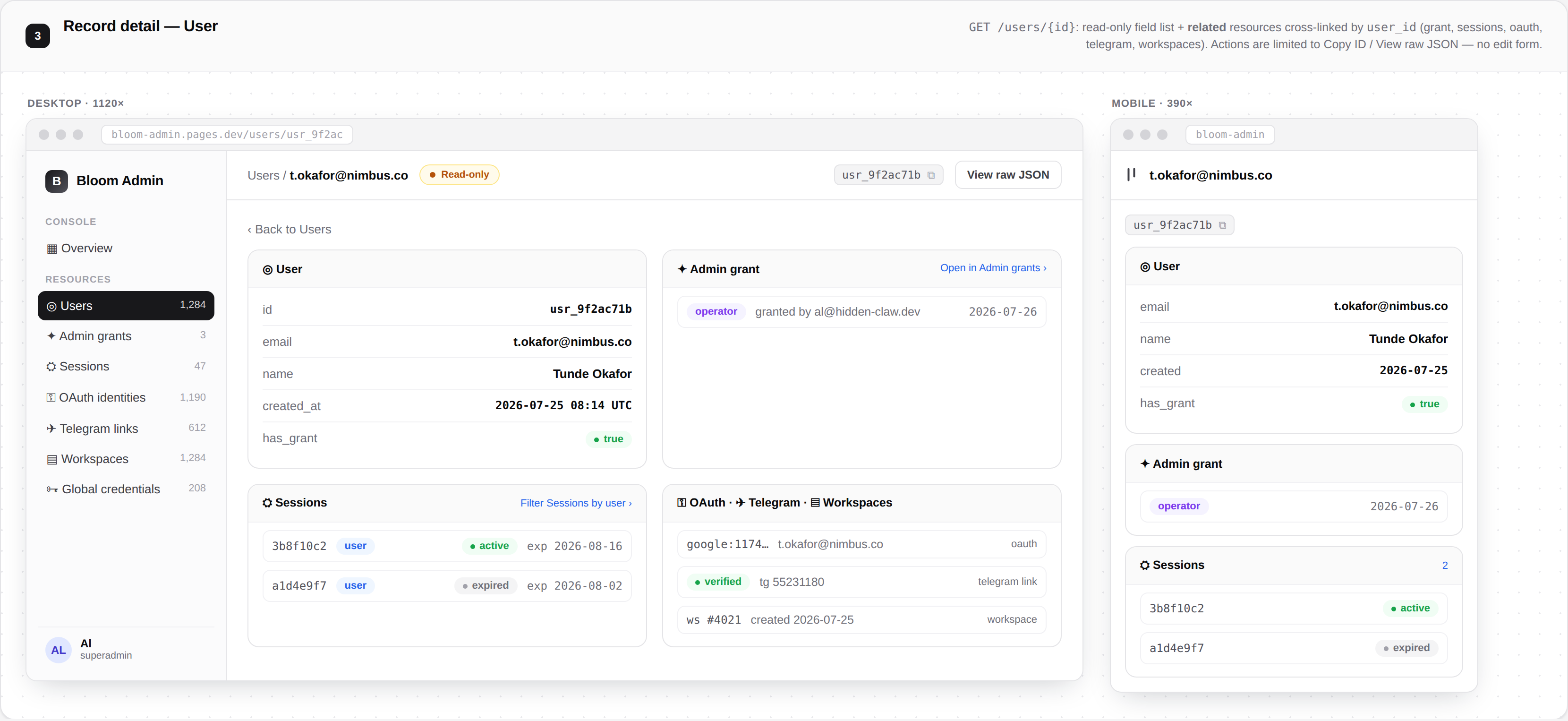

3	Record detail (User) — read-only fields + related panels cross-linked by user_id; actions limited to Copy ID / View raw JSON
4	Overview — resource total tiles, grants-by-role, recent sessions; no fabricated metrics

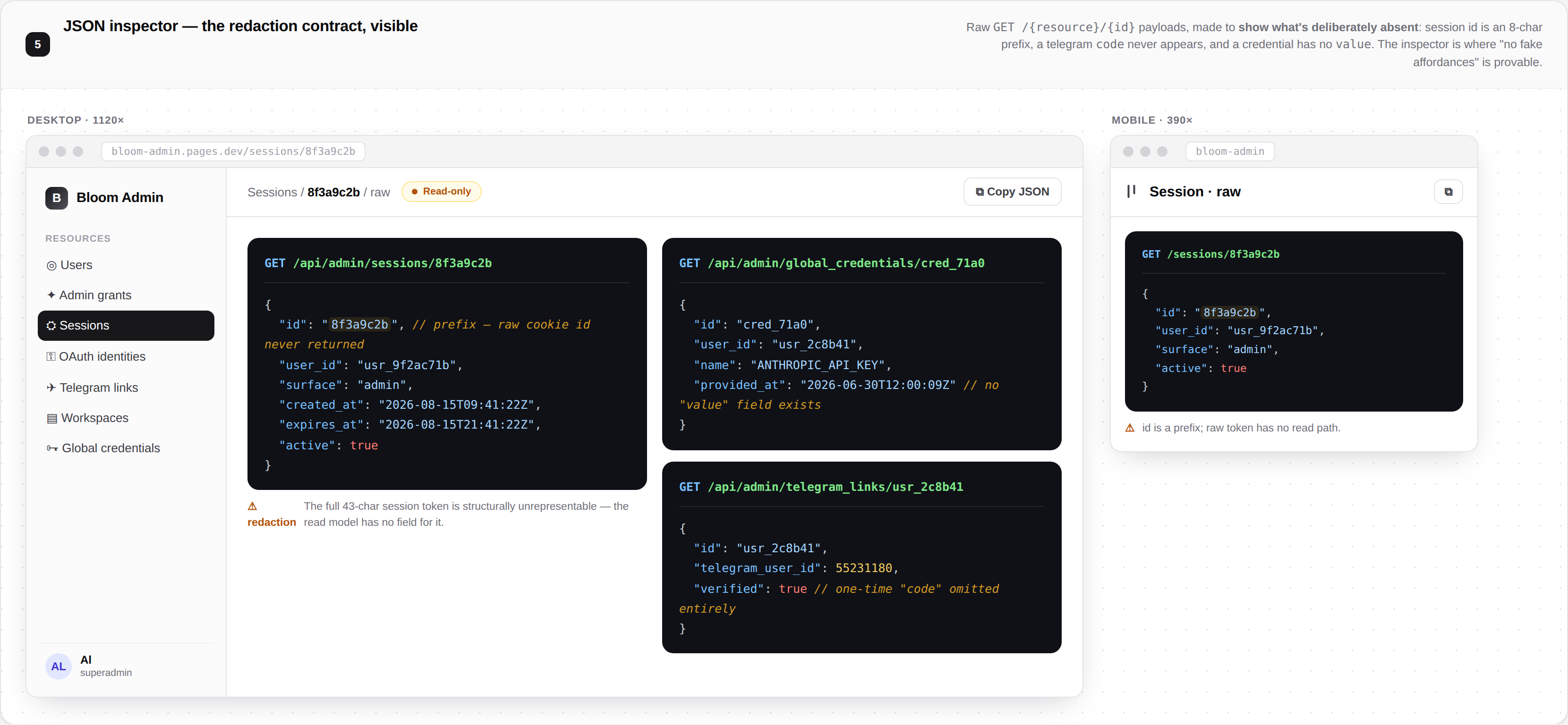

5	JSON inspector — the redaction contract made visible

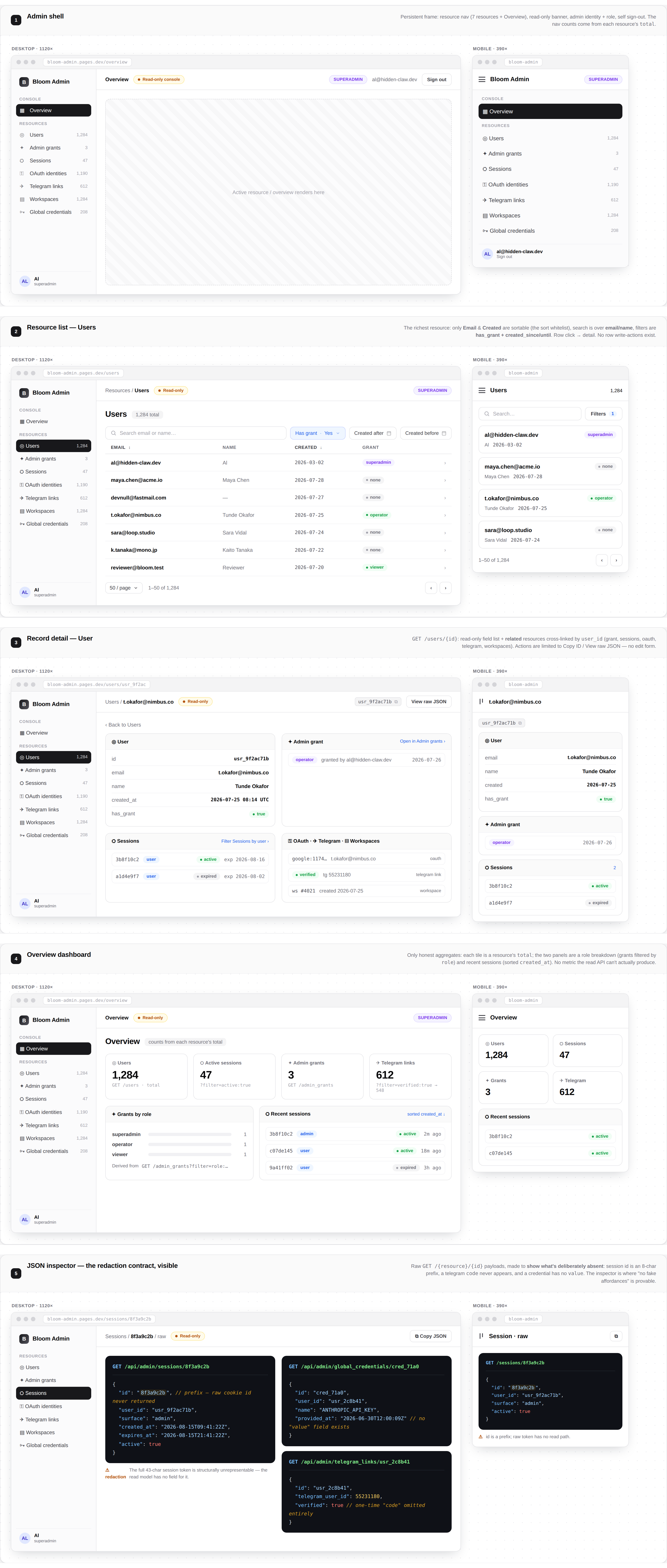

All five at once: reference/admin-all-boards.png. Full layout source: reference/admin-design-study.html.

The hard rule: no fake affordances

Every control in these frames maps 1:1 to what the M27-7 read-only resource protocol (apps/api/src/bloom/domain/admin_resources.py, apps/api/src/bloom/persistence/admin_resources.py) actually supports. The admin surface is read-only in this slice — no create/edit/delete/bulk controls exist anywhere, because the backend exposes no mutation routes.

The frames are bound to exactly this whitelist:

Resource	Filters	Search	Sortable columns
users	has_grant, created_since, created_until	email, name	email, created_at
admin_grants	role	—	granted_at, role
sessions	user_id, surface, active	—	created_at, expires_at
oauth_identities	provider	email	provider, user_id
telegram_links	verified	—	created_at
workspaces	—	user email	created_at, user_email
global_credentials	user_id	name	provided_at, name
jobs (M27-12)	kind, status	—	run_after, attempts
outbound_messages (M27-12)	channel, kind, status, thread_id	—	created_at
runtime_correlations (M27-12)	runtime, status	external id	created_at, updated_at
projects (#488)	phase, lifecycle, owner_user_id	title, thread id	updated_at, title
audit_log (M27-13)	actor_id, action, resource, resource_id, outcome, since, until	—	at

Redaction is structural (fields absent from the read models cannot serialize):

• Session id is an 8-character prefix — the raw 43-char cookie id never leaves the store.
• Telegram link one-time code is omitted entirely.
• Global credentials carry metadata only — there is no value field.
• Audit before/after snapshots are redacted at append time (M27-3); the audit screens (M27-13) render them verbatim, read-only.
• Job payloads (M27-12) render read-only, always: they are immutable server-side (RCE-adjacent - they drive Claude Code execution on a worker VM). The only job verbs are retry / cancel (+ bulk cancel), and no verb accepts a payload - retry re-enqueues the stored payload byte-identically.
• Outbound messages (M27-12) carry a truncated preview + content hash only - the full body was never stored (#216), so it has no field to leak from.
• Runtime correlations' free-form metadata dict is omitted entirely (M27-12).

The JSON-inspector board exists to make this contract visible in the UI.

Forward-looking: forms standard for write slices

When later milestones add mutation routes, admin forms use the project standard: shadcn Form + react-hook-form + zod. Nothing in the current frames anticipates those routes.
